The Model-II
User-Definable Laboratory Instrument
FPGA-ARM Programmable System
HoustonMicro Computer Company, LLC. 16821 Buccaneer Ln. Suite 106. Houston, Tx. 77058

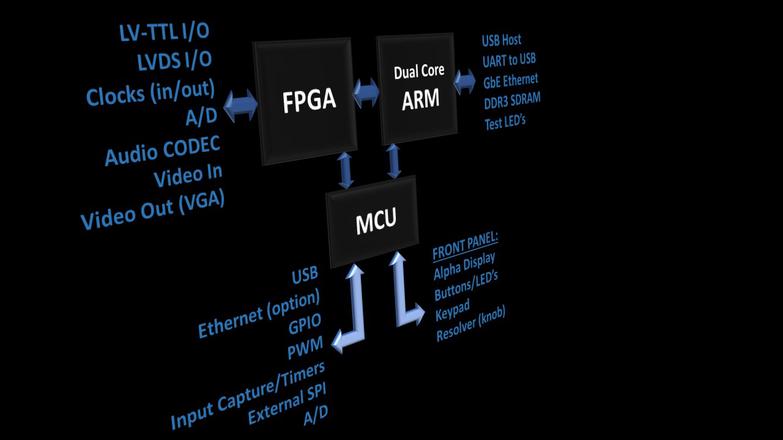

Model - II Block Diagram
ARM HARD PROCESSOR with I/O

-  Dual-Core ARM Cortex-A9 @925MHz
-  USB to UART
-  USB Host (2)
-  Ethernet

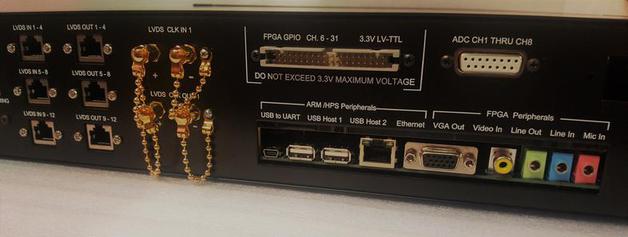

FPGA I/O

-  8 Analog-to-Digital Converter Channels
-  36 LV-TTL (3.3V) GPIO on Standard Header Connector

-  12 LVDS IN
-  12 LVDS OUT

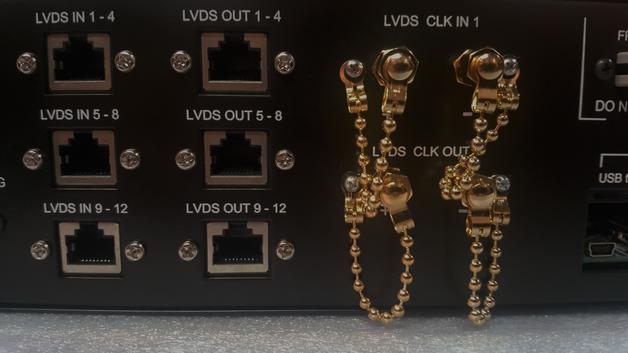

-  RJ45's: Easy CAT6 cabling at short or long distances
-  SMA's: PLL / LVDS Clock Output, Clock Input
-  High Speed LVDS Signaling up to 640 Mbps

-  Video In, VGA Out
-  Audio: Line In, Mic In, Line Out

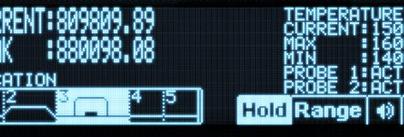

FRONT PANEL DISPLAY

-  ASCII Character Codes Capable

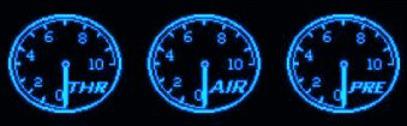

-  Graphics Capable
-  RS-232, SPI or Parallel TTL Interface to FPGA
-  Blue Florescent Color Scheme

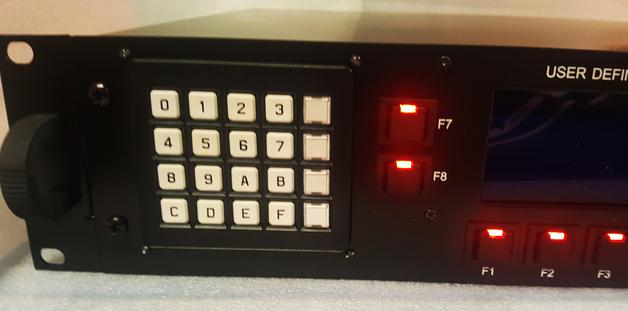

KEYPAD, BUTTONS, LED INDICATORS

-  Column/Row Type Keypad Interface
-  5th Column User Definable. Common Inserts Provided
-  8 User Definable Buttons
-  8 User Controllable LED's on Buttons
-  Custom Panel on Silkscreening Available
- Test Data Generation
- FPGA & ARM/CPU Data Processing
- Proof-of-Concept Prototyping
- User Definable / Programmable
- Custom Silk-Screening Available
- General Purpose Laboratory Use
...................................................................................................................................................................................................................................................
