MCU:
Freescale 9S12E128 (HC12)

* 16-bit CPU
* HC11 upward compatible*
* Up to 25 MHz (50 MHz internal)
* BDM programming port


I/O:
USB  (1) (FTDI)
RS-232  (2)
SCI  (2) (via RS-232 above)
SPI  (1) (3.3V)
55 pins of GPIO (3.3V)*


MEMORY:
FLASH 128K
SRAM 16K
EEPROM (onboard via I2C bus)


SPECIAL FUNCTION*
Input Capture Timers
Output Compare Timers
Pulse Width Modulators
COP Watchdog
Clock Monitor
Real Time Interupt
External Interupt (SMA conn.)
Interupt from FPGA


ANALOG CONVERSION:
DAC's (2)
A/D Converters (16)
A/D external trigger




FPGA:​
Altera Cyclone-II C8

* Up to 360 MHz clock speed*
* Onboard configuration ROM
* JTAG programming port


DATA I/O:
12 LVDS Inputs (differential)
12 LVDS Outputs (differential)
30 LV-TTL 3.3V Input or Output*

Programmable:
LV-TTL source terminators
LV-TTL drive current


CLOCK I/O:
2 Clock LVDS Inputs
2 Clock LV-TTL Inputs
1 Clock LVDS Output
1 Clock LV-TTL Output
1 socketed oscillator Input
1 clock input from MCU


INTERNAL:
8,256 Logic Elements
36 RAM Blocks (M4K)
8 global clock networks
18 DSP multipliers
2 PLL's (based on any clock input)


Misc. and Error Handling:
* Integrated MCU-FPGA Interface
* Interrupt signal, FPGA to MCU
* error signal, FPGA to MCU
* MCU can restart FPGA via software
* 4 Troubleshooting LED's





E-C2 BOARDS CURRENTLY OUT OF STOCK.
Please contact us for pricing, product availability and purchase order terms.  We accept Visa, MasterCard, Discover, and American Express.



BOARD FEATURES:



​


SOFTWARE:

MCU:
Compatible with Free CodeWarrior* design software from Freescale.

MCU Programmable in:
       * C
       * C++
       * HC12 Assembly
       * HC11 Assembly
       * MC6800 Assembly




FPGA:
Compatible with Free Quartus* design software from Altera.

FPGA Programmable in:
        * VHDL
        * Verilog
        * AHDL

        * Schematic Drawing Entry
        * Classic "7400-series" Logic

        * MegaWizards and MegaFunctions
        * Graphical State Machine Editor
        * Combinations of above
           (HDL's, schematics, etc...)

        *  FPGA IP-Core for communications
            with Microcontroller
*Microcontroller is upward compatible with HC11 instruction set. MCU GPIO pins use 3.3V signaling, can be programmed for general purpose input or output, or alternatively as thier special functions (timers, ADC, etc.).  FPGA speed rating is upper limit and dependent on user design.  FPGA LV-TTL pins programmable for either input or output.  Board requires 3.3V power, and 3.3V signaling for LV-TTL.  Partial spec., see MCU and FPGA device data sheets for complete device specifications. "CodeWarrior" is a trademark of Freescale.  "Quartus" is a trademark of Altera.

Copyright 2008 - 2014. HoustonMicro Computer Company, LLC. All Rights Reserved.

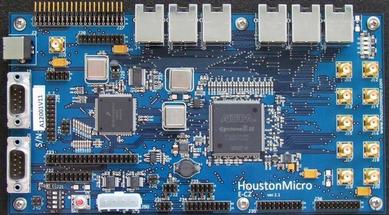

E-C2 System Board
Details
* Requires 3.3V DC external power


* JTAG and BDM pods required for
   programming MCU and FPGA.
   See "Products" page for available pods


​

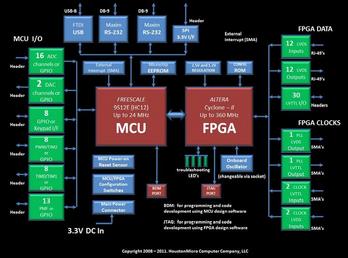

(click images to download block diagram and brochure)
​


* Board designed for noise reduction and Signal Integrity

* Programmable in C, C++, Assembly/VHDL, Verilog, or
   schematic entry

​
